Clustered Dome Skylight

FF-Cluster


Product Details for Clustered Dome Skylight | FF-Cluster

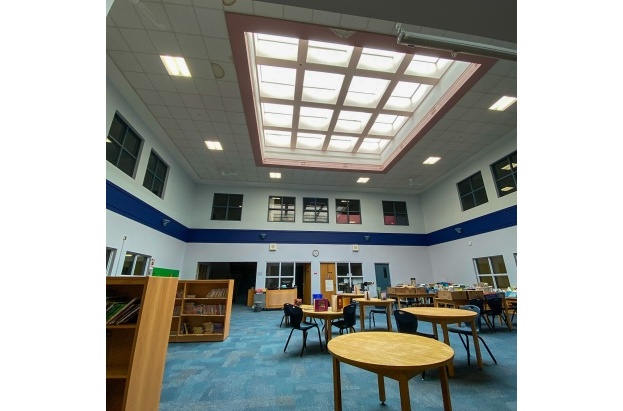

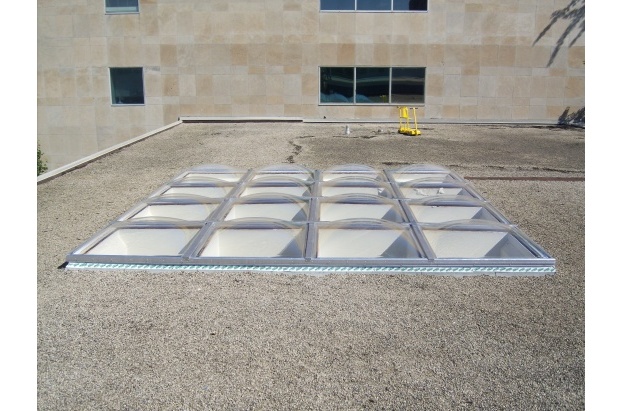

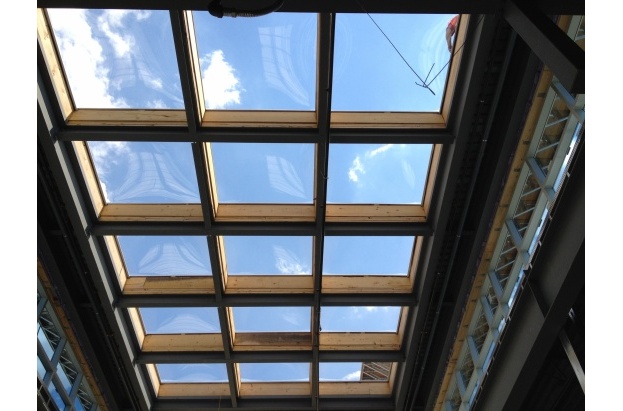

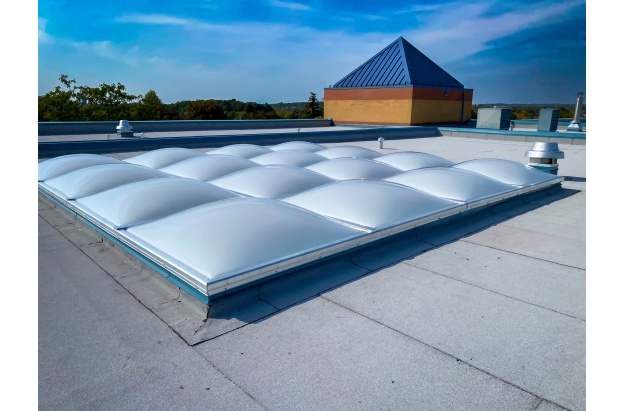

Our Clustered Dome Skylight is one of our most versatile products in terms of configuration. Multiple skylight banks are ganged together in rows and columns to form what is known as a cluster. These clusters of skylights are connected with a central pressure plate system that allows for multiple dome sections to cover a large span of open roof area. Generally, this model is formatted in an even number of rows to columns but is also extremely versatile and can be configured to any pattern. Regardless of the shape and size required, this model skylight can be shipped in modular sections to site and reassembled in only a few hours.  It is comprised of an all-aluminum curb frame that has been sealed with a PVC Frost-Free thermal break profile designed for mounting on 3” (76mm) wide curbs, dual-layer UV-stabilized acrylic lenses, and heavy-duty aluminum cap frames to complete the assembly.

Further customization options include custom painted interior and exterior framing (can be multiple colours), upgraded acrylic options such as tinted, translucent white or even thermoformed acrylic pyramid shapes, and can be built to suit any custom size or pattern. For applications that require the skylight to be self-supporting, inquire about our Structural Self-Supporting (STR) option.

This skylight option provides a versatile and highly adaptive solution for adding natural daylight and open sky views to any part of your house or commercial application. Recommended for any installation on any flat roof system but would work exceptionally well for large-format homes, outdoor patios, commercial buildings, office areas, showrooms, meeting rooms, large walkways.

Options & Specifications

Features
  • Ideal For Flat Roofs
Recommended Use
  • Luxury Homes
  • Outdoor Patios
  • Commercial Buildings
  • Office Area
  • Showrooms
  • Meeting Rooms
  • Large Walkways
Frame Options
Mill Finish
Commercial Brown
Matte Black
Custom Colours Avail.
Glazing Options
Clear / Clear
Bronze / Clear
Clear / White
Triple Glazing
Product Options & Specifications
